Products Description

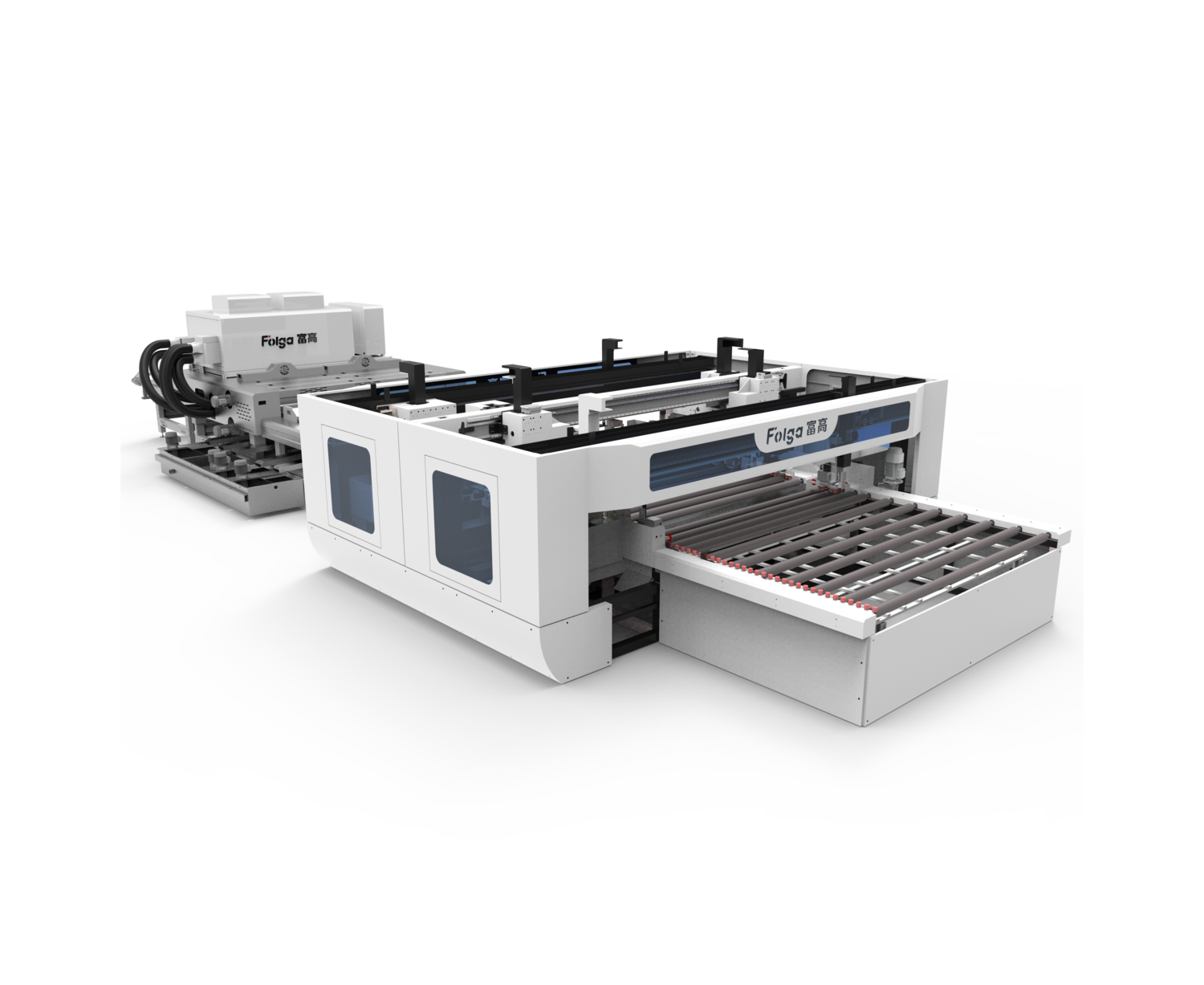

Glass seaming machines are available to achieve chamfering, bottom edge grinding, and Low-E film removal at a process, which is easy for operators to control without grinding wheels replacement during processing. Chamfering (including upper and down arris) is the basic and standard configuration of a seaming machine, and you choose optional functions according to your actual needs.Good for Window glass,door glass, and insulating glass. Improve efficiency & reduce labor cost for glass factories. Automatic Glass Edging Line helps you build a Glass Deep Processing Intelligent Factory.
Parameters
| Glass Thickness | 3-12mm |
| Processing Speed 3-6mm | 1-40m/min |
| Processing Speed 8-12mm | 1-20m/min |
| Chamfer Grinding | 0.5-2mm |
| Parallel Error | ≤0.2mm/m |
| Air Pressure | ≥0.6Mpa |
| Voltage | 380V/50Hz |
| Single Machine Power | 19-22Kw |
| Single Machine Weight | 5450Kg |
| Work Height | 900±20 |
Products Features
It adopts three bridges and four sets of grinding structure,working speed up tp 40m/min;
Spindle structure adopts linear guide rail; helical gear and gear rack to make sure fast, stable and accurate transmission;
Servo motors to make transmission faster,more stable and accurate;
Up &down chamfering, edge and LOW-E removal can be finished at one time;
Human-computer interface,PLC or CNC control system, easy to operate and high automation;
High effective even mixed size mode;
It adopts lifting probe to reduce the touching with glass, and improve the life of the probe for prevent the glass surface from being scratched.
Glass Processing Equipment,One-stop glass edging production line for intelligent glass deep processing factor
FAQ
Q1: What are your main products?
A: We mainly produce glass single edging machine & glass double edging machine & glass seaming machine, and we are available to offer other glass machines, such as washing machine, loading & unloading machine, irregular glass shaping machine, drill machine, custom glass deep processing line,and so on
Q2: How many years of experience does your company have in manufacturing glass machines?
A: Our company was built in 2004, 22 years of history with strong strength for making sure stable technology & quality & prompt response & after-sales service
Q3: Are you available to dispatch engineers for on-site installation & training?
A: Yes, global installation services are available from us
Q4: Can you customize the machine size for JUMBO glass?
A: Yes, we can customize the glass machine size based on your requirements
Q5: What kind of glass do your machines process?
A: Our machines are available to process all kinds of glass with shiny polishing or matte grinding. We will recommend the optimum glass machine based on your requirements
Q6: What can you offer if machines have a problem?
A: Firstly, within 8 hours, we will respond; secondly, within 24 hours, our engineers will offer troubleshooting ways in the group to teach you how to fix the problem step by step; thirdly, we will send spare parts ASAP by DHL or other Express if needed to replace spare parts.
